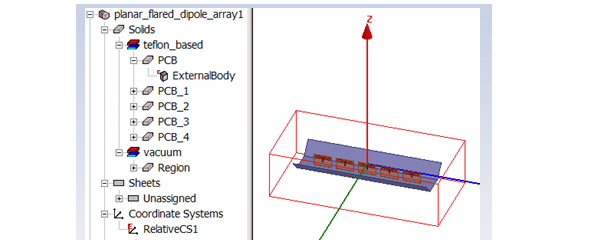

ANSYS Workbench Integration Overview > User Defined Model (UDM) for ANSYS WB IntegrationA User Defined Model (UDM) is collection of externally defined parts imported into an Ansoft 3D Modeler. • UDM includes part attributes (like name, color etc) and material assignment • UDM can also have external coordinate systems and corresponding planes • UDM parts can be parameterized and manipulated in Ansoft modeler just like any other part ![[spacer]](1p.gif){kind=small}
 UDM can either represent Static geometry models or • Dynamic links to models of external geometry editors • Used for supporting CAD integration in WorkBench UDM uses same plugin technology as User Defined Part (UDP) See the following sections: UDM compared to User Defined Primitives Insert UDM Command on Draw Menu Library of Models for CAD Integration Ansoft to ANSYS Geometry Transfer Geometry Transfer through ANSYS DesignModeler (DM)
