ANSYS Workbench Integration Overview >
   User Defined Model (UDM) for ANSYS WB Integration >
       Library of Models for CAD Integration


Library of Models for CAD Integration

UDM technology allows library of models

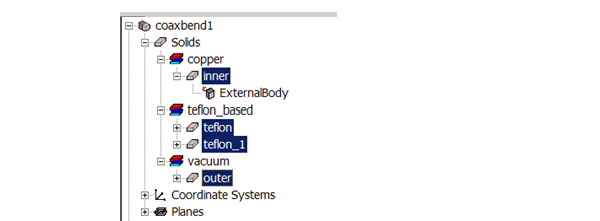

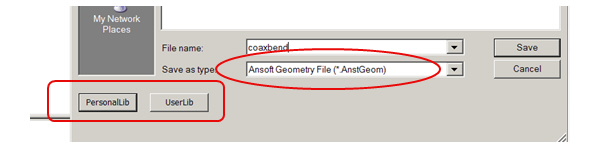

•  Any Ansoft model can be exported as ‘Ansoft Geometry File’

[spacer]

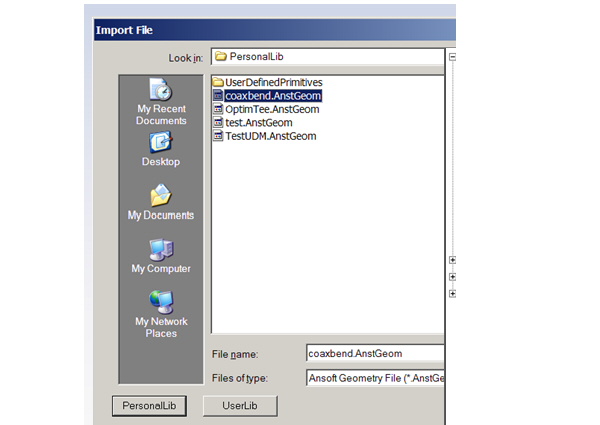

•  An Ansoft Geometry File can be imported back as a UDM.

[spacer]

•  Any Design/project variables associated with model are brought in as UDM parameters.

[spacer]

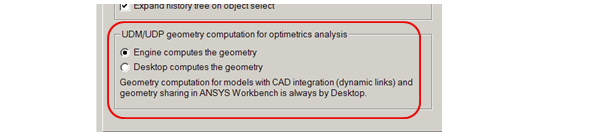

Geometry computation for UDM (and also UDP) can be specified in the Modeler options as either done on.

•  Engine side (default):

Requires deployment of UDM on each node

•  Desktop side:

UDM need not be deployed on each engine

Desktop will be busy during parametric analysis

[spacer]

Related Topics

User Defined Model (UDM) for ANSYS WB Integration

UDM compared to User Defined Primitives

Insert UDM Command on Draw Menu

UDM Properties

Ansoft to ANSYS Geometry Transfer

Material Assignment Transfer

Geometry Transfer through ANSYS DesignModeler (DM)
