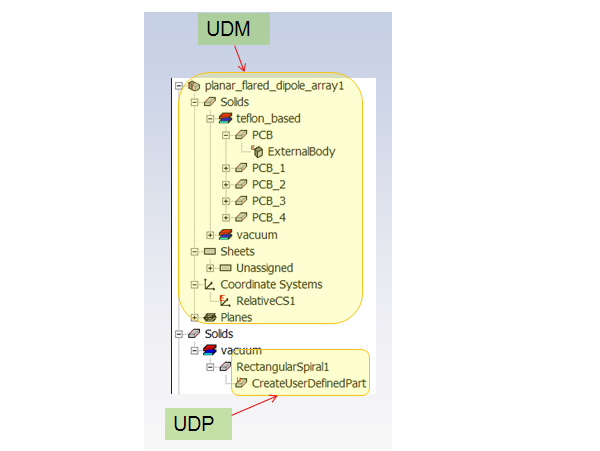

ANSYS Workbench Integration Overview > UDM compared to User Defined PrimitivesUser Defined Models (UDM) resemble User Defined Primitives (UDP): ![[spacer]](1p.gif){kind=small}
 • Ansoft products can be extended by users through new UDMs • UDM plugins are discovered by searching standard directory paths • Plugins for static UDM can build model using ‘callback interfaces’ (like create-box, create-cylinder, subtract etc) similar to UDP • UDMs run inside Ansoft application • UDMs provide geometry, topology, persistence and parameters In contrast to UDP: • UDM provides multiple Parts/CS/etc. UDP provides primitive operation only for a single Part • UDM provides part attributes and material assignment UDP does not define part attributes or material UDM Properties have four tabs – Definitions, Parameters, Options and Info • Definition tab has: UDM name Coordinate system used to position UDM May have external reference to file • Info tab has: UDM dll name, dll location, version etc • Option tab: may have options if any Related Topics User Defined Model (UDM) for ANSYS WB Integration Insert UDM Command on Draw Menu Library of Models for CAD Integration ANSYS to Ansoft Geometry Transfer CAD Integration Material Assignment Transfer Geometry Transfer through ANSYS DesignModeler (DM)
