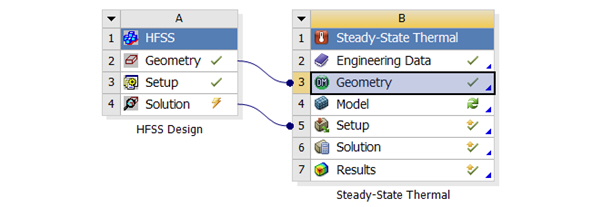

ANSYS Workbench Integration Overview > Geometry Transfer through ANSYS DesignModeler (DM)It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical • Useful when geometry needs preprocessing for ANSYS simulation • Can take advantage of geometry commands available in DM For example, consider an HFSS model linked to DM through the Workbench. ![[spacer]](1p.gif){kind=small}

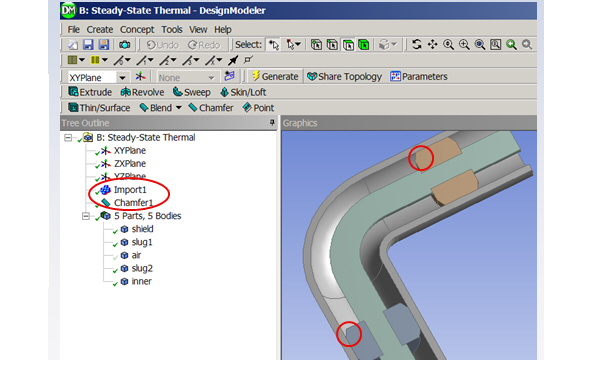

 In this case, the figure below shows how a chamfer operation on geometries is imported.
 It is possible to edit geometry in ANSYS DesignModeler (DM) before consuming in Mechanical • Useful when geometry needs preprocessing for ANSYS simulation • Can take advantage of geometry commands available in DM Related Topics User Defined Model (UDM) for ANSYS WB Integration Ansoft to ANSYS Geometry Transfer
