Ansoft Designer / Ansys Designer 在线帮助文档：

ANSYS Workbench Integration Overview >
   Ansoft to ANSYS Geometry Transfer


Ansoft to ANSYS Geometry Transfer

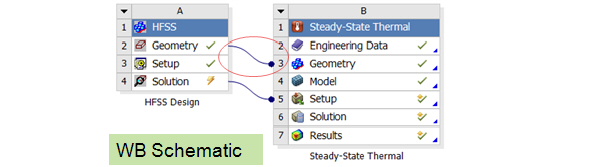

Ansoft CAD Integration transfers model information based on Workbench links.

[spacer]

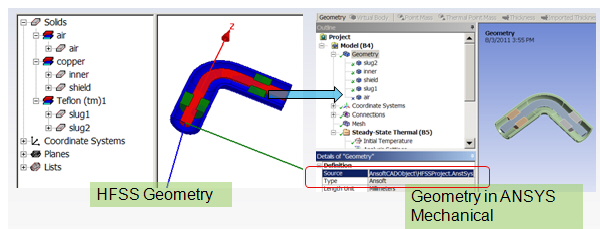

The following figure shows how the information is transferred between simulators.

[spacer]

The information transferred includes:

•  Geometry

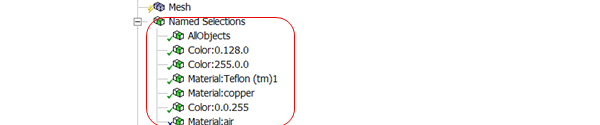

•  Ansoft lists and material assignment as Named Selection

[spacer]

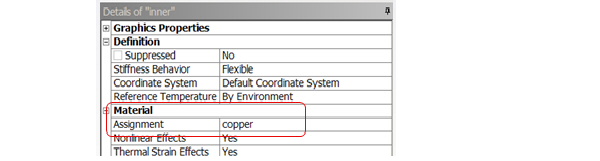

•  Material assignment

[spacer]

The CAD Integration geometry link is

•  Dynamic because you can get updated geometry from Ansoft

•  Associative because IDs persist between Ansoft model and ANSYS model during model refresh.

Boundary conditions in ANSYS are preserved.

Related Topics

User Defined Model (UDM) for ANSYS WB Integration

Material Assignment Transfer

Geometry Transfer through ANSYS DesignModeler (DM)
