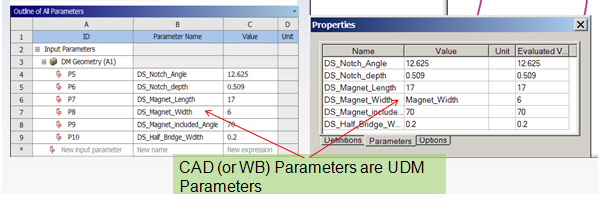

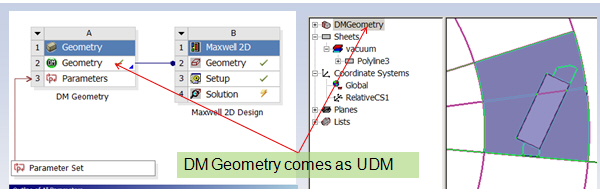

ANSYS Workbench Integration Overview > Ansoft CAD Integration through WorkbenchAnsoft CAD integration is a Workbench feature available for Ansoft 3D Products - HFSS, Maxwell and Q3D, as the ANSYS Framework for Ansoft package. The feature is available only through Workbench, not available with standalone Ansoft products. Ansoft CAD integration provides a bi-directional dynamic link through Workbench, which makes it possible to get updated geometry from CAD and to modify CAD parameters in Ansoft products to return updated geometry. The feature is non-associative due to a need to reassign boundaries if modified CAD model is to be used. The process creates a User Defined Model (UDM) for each geometry source The User Defined Model (UDM) format makes it possible to exchange parameters. See here for further description of the UDM feature and function. Ansoft CAD integration makes it possible to consume geometry from multiple upstream source which can be any CAD or Ansoft product. This feature supports direct interfaces with all major CAD systems. Pro/E Wildfire UG NX CATIA V5 SolidWorks ANSYS Design Modeler (DM) ANSYS SpaceClaim Direct Modeler (SCDM) CAD software must be installed on user machine Not required on solve nodes Platforms Supported Windows 32 bit Windows 64 bit Linux is NOT supported but it is possible setup project on windows and use Linux nodes for solves. See the following sections: CAD Integration and Geometry Sharing Bi-Directional CAD Integration Multiple Geometry Links for CAD Integration Important Geometry Options for CAD Integration HFSS视频教程 ADS视频教程 CST视频教程 Ansoft Designer 中文教程 |
