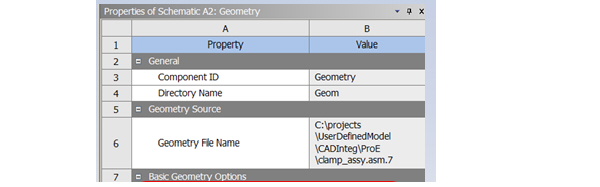

ANSYS Workbench Integration Overview > Important Geometry Options for CAD IntegrationSelect a Geometry Cell in Workbench to see options in Properties window. ![[spacer]](1p.gif){kind=small}
 • Control dimension of bodies coming from CAD
 • Make sure parameters is checked and parameter key (filter) is appropriate to bring CAD parameters.
 • Attributes key should be empty or Color to bring in CAD Colors
 • Material properties must be checked to bring in the material assignment.
 • The Mixed import resolution option is used to resolve parts with mixed dimension (typically from Pro/E)
 Refer to ANSYS Help for details: Path // CAD Integration // Overview :: 2 // Project Schematic Presence Related to CAD Integration // Geometry Preferences Related Topics Ansoft CAD Integration Through Workbench CAD Integration and Geometry Sharing Bi-Directional CAD Integration Multiple Geometry Links for CAD Integration
