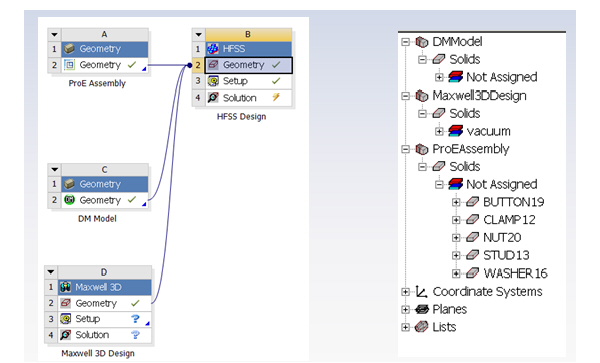

ANSYS Workbench Integration Overview > Multiple Geometry Links for CAD IntegrationWith CAD Integration you can consume geometry from multiple upstream sources. The Source can be any of CAD or Ansoft products. This creates a UDM for each geometry source. For example, the following figure shows a DM Model, a Maxwell model, and ProE model linked to HFSS in Workbench, and displayed in the HFSS History tree as three UDMs. ![[spacer]](1p.gif){kind=small}
 Related Topics Ansoft CAD Integration Through Workbench CAD Integration and Geometry Sharing Bi-Directional CAD Integration Important Geometry Options for CAD Integration
