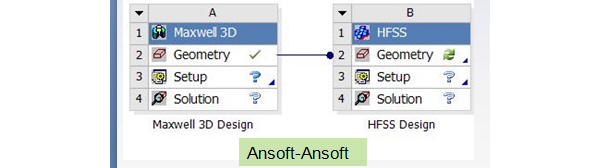

ANSYS Workbench Integration Overview > CAD Integration and Geometry SharingCAD model comes into Ansoft as User Defined Model (UDM). The input to Ansoft from CAD is: • Geometry/Topology with persistent IDs • CAD parameters • Material assignment • Attributes like name, and color ![[spacer]](1p.gif){kind=small}

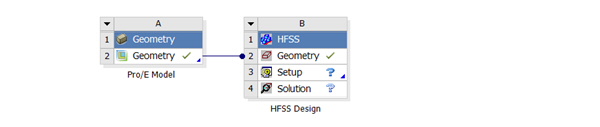

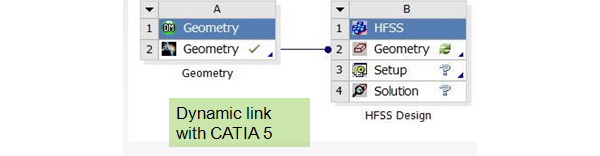

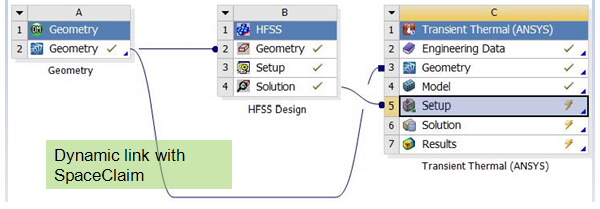

 For example, in Workbench, a Pro/E Model can be linked to Ansys.

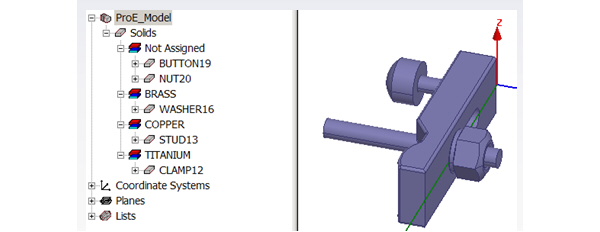

 The geometry can then be viewed in HFSS as a UDM.

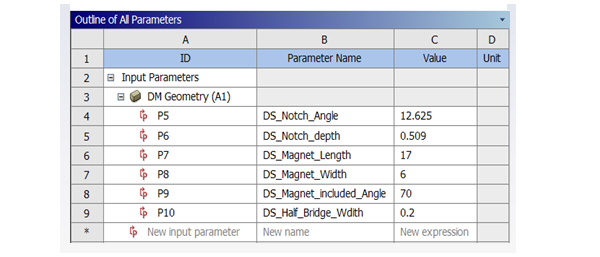

 The CAD or WB model parameters appear in the Workbench:

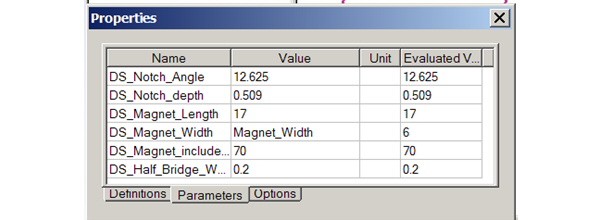

 Though the Ansoft CAD Integration, the linked UDM includes the same parameters.
 Related Topics Ansoft CAD Integration Through Workbench Bi-Directional CAD Integration Multiple Geometry Links for CAD Integration Important Geometry Options for CAD Integration
