B i-Directional CAD Integration

Ansoft CAD Integrations uses Refresh (or Generate) CAD Model to pass updates.

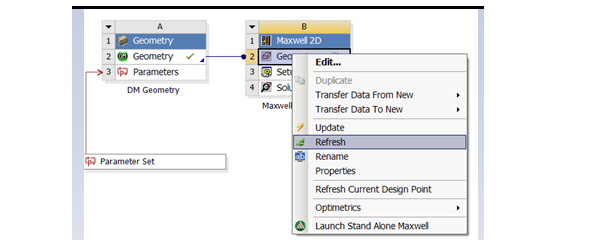

For example, you make an edit in a CAD application and either run Refresh on an Ansoft Geometry Cell or run Generate on the UDM in the Ansoft window

Refresh pulls the current state of CAD model (geometry, parameters, materials etc) and updates the corresponding data in the Ansoft application.

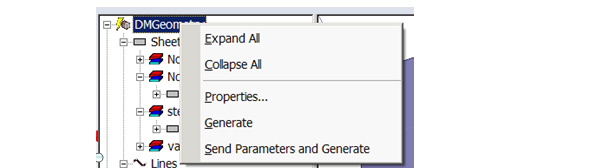

If you edit UDM (CAD) parameters in the Ansoft modeler window you can run the Send Parameters and Generate command

The command passes the edited parameters to the linked CAD application and then pulls corresponding CAD geometry.

CAD Integration and Geometry Sharing

CAD Integration Model Edits

Multiple Geometry Links for CAD Integration

CAD Integration Functionality

Healing with CAD Integration

Important Geometry Options for CAD Integration
