Ansoft Designer / Ansys Designer 在线帮助文档：

HFSS and Planar EM Simulators >
Adding a Solution Setup >
Specifying Solution Settings >
Add Planar EM Solution Setup

Add Planar EM Solution Setup

To add a new Planar EM solution setup to a project, use one of the following:

• On the EM Design menu, point to Solution Setup, and then click Add Planar EM Solution Setup.

• Or right-click Analysis in the project tree and then click Add Planar EM Solution Setup.

• Or click the Add Planar EM Solution Setup toolbar icon.

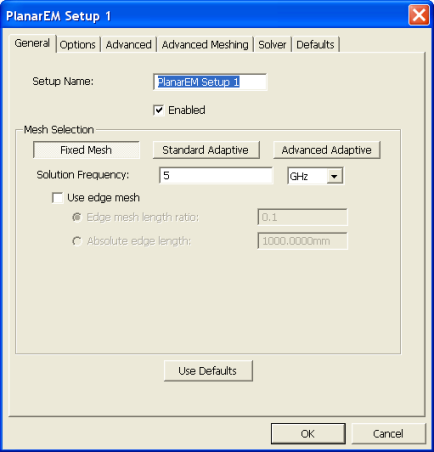

The PlanarEM setup dialog box appears.

The topics for this section include:

Planar Setup: General Tab

Planar Setup: Options Tab

Planar Setup: Advanced Tab

Planar Setup: Advanced Meshing Tab

Planar Setup: Solver Tab

Planar Setup: Defaults Tab
