           Planar Setup: Advanced Meshing Tab

Planar Setup: Advanced Meshing Tab

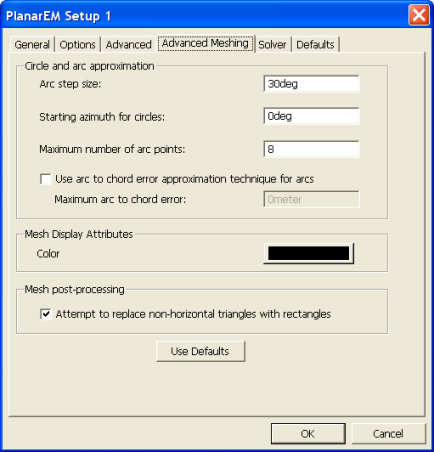

Click the Advanced Meshing tab of the Add Planar EM Solution Setup dialog to access the following settings.

• Circle and arc approximation: circles and arcs must be replaced with straight edge approximations before meshing. There is no attempt to match areas; points are simply introduced on the original arc at the locations specified by the following parameters.

• Arc setup size: the angular interval below which mesh points are added.

• Starting azimuth for circles: specifies the location of the first mesh point or circles.

• Maximum number of arc points: the maximum number of mesh points on a given arc segment.

• Use arc to chord error approximation technique for arc: the resulting straight edge approximation will not deviate from the original arc by more than the specified error.

— Maximum arc to chord error: maximum distance permissible between a straight edge approximation (the chord) and the original arc.

• Mesh Display Attributes: controls the mesh overlay in Layout.

• Color: the mesh is drawn in the specified color; in Layout3D the layer color is used for the mesh.

• Mesh post-processing:

• Attempt to replace non-horizontal triangles with rectangles: the PlanarEM solver operates more efficiently when there are no non-horizontal triangles. With this option set, the mesher will attempt to resolve all non-horizontal triangles that form a perfect rectangle into rectangular mesh elements.
