Setting Local Layout Options

To change local layout options for a particular layout, select Settings or Grid Settings under the Layout menu.

Note

Local options for a layout may be changed only from the top level of the layout hierarchy, not from within a subcircuit.

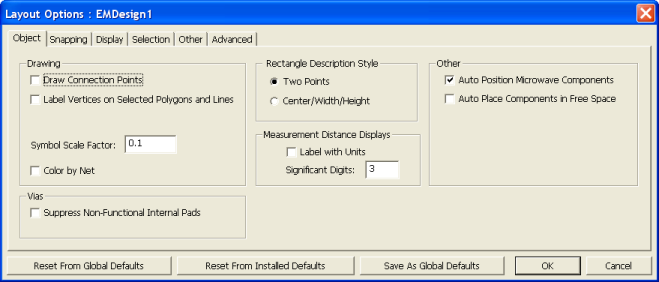

When the dialog is accessed via Grid Settings it opens on the Display tab. When the dialog is accessed via Settings it opens on the Object tab.

Note

Saving global defaults is not undoable. When global defaults are saved, Designer immediately writes them to the registry and then uses these new default values for all subsequent applications. The only way to revert to previous global values is to once again modify the default values and then do another global save.

The following buttons control changes made to the local layout options:

• Reset From Global Defaults is used to change the settings of all the tabs to those of the current Global settings. The reset affects only the dialog contents.

• Reset From Installed Defaults is used to change the settings of all the tabs to those of the initial-install defaults. The reset affects only the dialog contents.

• Save As Global Defaults saves the currents settings under all tabs to the Global defaults registry. This action is not undoable and is not scriptable. The save takes place immediately and does not close the dialog. Use of the Cancel button after Save As Global Defaults does not restore the registry.

• OK saves the settings of all the tabs to the current layout to be used locally, and then closes the dialog. The action is undoable and is scriptable.

• Cancel closes the dialog without affecting the local settings of the layout.

Both the global and local Layout Options dialogs have six tabs. The options on each tab are much the same for both global and local settings. The differences are:

• Save as Global Defaults is present only for each of the local options tabs.

• Always Show Layer Merging Dialog on the Other tab is present only for global options.

• Fit to Contents on the Display tab is present only for local options.

The Layout Options dialog has the following tabs:
