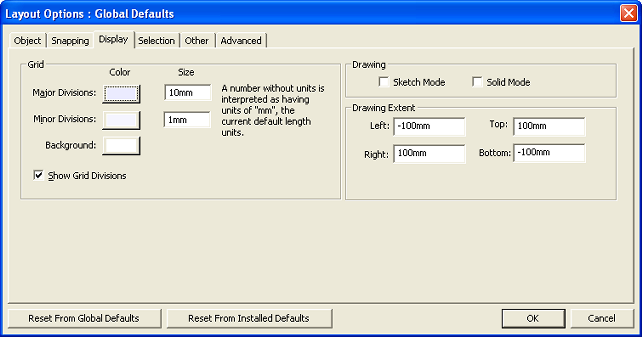

Layout Editor User Guide > The Display TabThe Display tab controls the grid display, the drawing area, and the drawing mode:
The Display tab also opens when you select Layout > Grid Settings. The grid consists of major and minor divisions. • Major Divisions — By default, the major grid divisions are spaced 10mm apart, and are a medium grey color. Reset the spacing by entering a new value in the Size box. Select a new color from the palette that appears when you click in the color rectangle. • Minor Divisions — By default, the major grid divisions are spaced 1mm apart, and are a light grey color. Reset the spacing by entering a new value in the Size box. Select a new color from the palette that appears when you click in the color rectangle. • Background — By default, the layout editor background is white. Select a new color from the palette that appears when you click in the color rectangle. • Show Grid Divisions — Toggles the grid display on and off. Default is on. • Drawing Extent — Specifies the size and extent of the layout. Defaults are Left, -100mm, Right, +100mm, Top, +100mm, Bottom, -100mm. Scroll bars indicate the extent of the full drawing area. • Drawing — By default, the drawing mode for planar objects is to fill them with a crosshatched pattern. You can also select Sketch Mode (show outlines only) or Solid Mode (solid fill color)
