Setting Global Layout Options

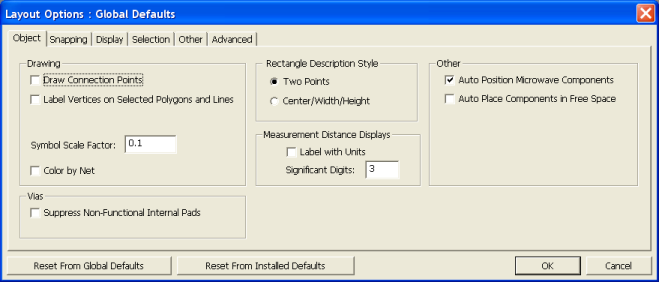

To change global layout options for all layouts, select Layout Editor Options under the Tools > Options menu. The Layout Options:Global Defaults dialog opens.

No project or layout needs to be open to change global options. Changes to global options affect layout designs that are opened after the changes are made, but do not affect layouts that were opened before the changes were made.

Note

Saving global defaults is not undoable. When global defaults are saved, Designer immediately writes them to the registry and then uses these new default values for all subsequent applications. The only way to revert to previous global values is to once again modify the default values and then do another global save.

The following buttons control changes made to the global layout options:

• Reset From Global Defaults is used to change the settings of all the tabs to those of the current Global settings. The reset affects only the dialog contents.

• Reset From Installed Defaults is used to change the settings of all the tabs to those of the initial-install defaults. The reset affects only the dialog contents.

• OK saves the currents settings of all the tabs to the Global defaults registry. This action is not undoable and is not scriptable. A dialog appears to allow you to confirm the changes in the global options by clicking Yes.

• Cancel closes the dialog without affecting the Global default settings. (Clicking No on the confirmation dialog also closes all dialogs without changing the settings.)

Both the global and local Layout Options dialogs have six tabs. The options on each tab are much the same for both global and local settings. The differences are:

• Save as Global Defaults is present only for each of the local options tabs.

• Always Show Layer Merging Dialog on the Other tab is present only for global options.

• Fit to Contents on the Display tab is present only for local options.

The topics for this section include:
