Ansoft Designer / Ansys Designer 在线帮助文档：

Layout Editor User Guide >
   Layout Editor Options  >
       Setting Global Layout Options >
           The Other Tab

The Other Tab

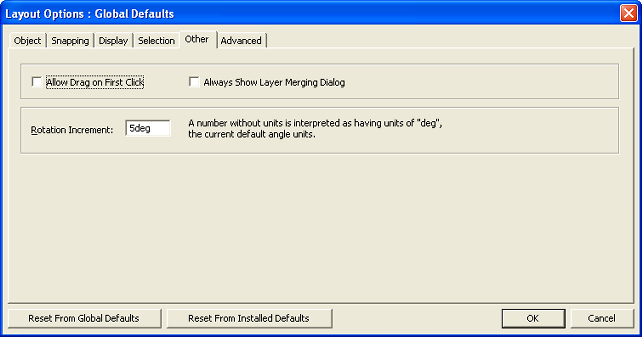

The Other tab controls dragging, the Merge layers dialog, and rotation:

• Allow Drag on First Click — When selected, holding down the mouse button on an object selects and attaches the object to the cursor. Drag the object to the desired location and release the mouse button. When unselected, first click to select the object, then click and hold down the mouse button to drag the object. Unselected is the default.

• Always Show Layer Merging Dialog — When selected, the Merge Layers dialog appears every time an object with layers is placed in the layout (or in a schematic). When unselected, the Merge Layers dialog appears only when automatic layer mapping cannot be performed. See the Merge Layers Dialog. Unselected is the default.

• Rotation Increment — During rotation in the 3D viewer using rotation handles (View > Rotate), objects are rotated by multiples of this amount. Default is 5 degrees. 2D rotations using Draw > Rotate always rotate 90 degrees counterclockwise.
