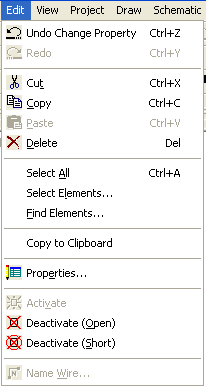

Schematic Editor > Editing OperationsWhen the Schematic Editor is the active window, clicking the Edit button on the top menu bar accesses the following pull-down:
This menu contains the following Schematic Editor commands. The commands that are active depend on what is selected and on the previous command. • Undo undoes the last operation (the last operation was changing the value of a property in the above picture, but the pulldown will show the last operation actually performed). • Redo re-executes the last operation that was undone. • Cut deletes the selected component or wire segment, and retains a copy for pasting into a schematic in the same application. • Copy creates a local copy for pasting into a schematic in the same application. • Paste puts the local object from the previous copy or cut into the schematic. • Delete deletes the component. • Select All selects all the components and nets in the schematic. • Select Elements opens a dialog so that you can select a component by name. See Selecting Components. • Find Elements opens a dialog so that you can find all elements that match the criteria you specify. See Finding Elements. • Copy to Clipboard creates a global copy on the clipboard for pasting into a different application. • Properties opens the Properties dialog for the selected element. See Displaying and Editing Component Properties. • Activate restores a deactivated component to the circuit. • Deactivate (Open) temporarily converts the component into an open circuit. • Deactivate (Short) temporarily converts the component into a short circuit. • Name Wire opens a dialog so that you can assign a new name to the selected wire node.
