Ansoft Designer / Ansys Designer 在线帮助文档：

Schematic Editor >
   Wiring Components >
       Selecting Components

Selecting Components

• To select a single element (component or wire segment) in the Schematic Editor, place the cursor over the element and left-click to select it. Left-click again anywhere in the schematic window to deselect the object.

• To select multiple elements, hold down the CTRL key while left-clicking the elements. To deselect one of the multiple elements, hold down the CTRL key and left-click on the element. To deselect all selected elements, left-click anywhere in the schematic window.

• When you move a selected component, any wiring normally stays attached to the component. To move a component and break its connections, hold down the SHIFT and CTRL keys, hold down the left mouse button on the component, and then drag the component to its new location.

• To select all connected segments of a wire, hold down the SHIFT and CTRL keys, and then left-click on any segment of the wire. If instead of clicking, you hold down the mouse button, you can drag the wire segments to a new location, breaking any connections.

• If you have difficulty selecting an object, you can select it from a dialog:

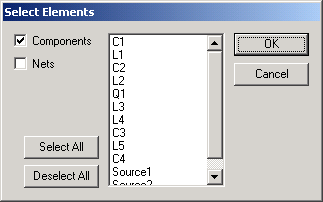

1. On the Edit menu, click Select Elements. This opens the Select Elements dialog.

2. In the Select Elements dialog, click the components you want to select in the Schematic Editor. You can select/deselect the Components or Nets box to vary the list of elements to choose from. You may also click the Select All or Deselect All buttons.
