Displaying and Editing Component Properties

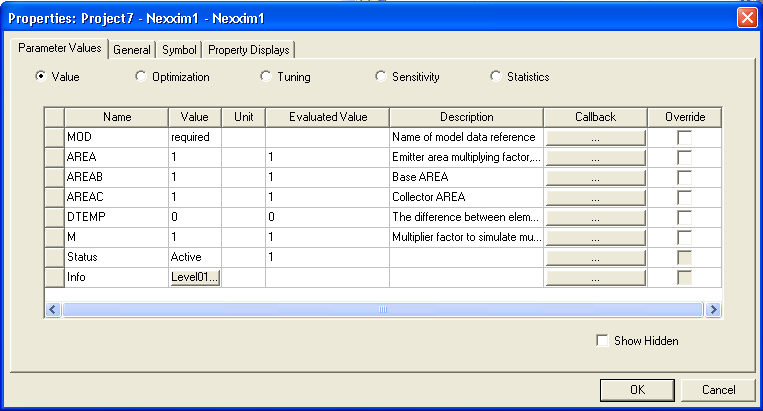

To display the properties of a component, double-click it. Its Properties dialog box appears. Use the dialog box to edit the property values.

Double-click on a property that is displayed near the component to start an in-place edit of the property value.

Note

Clicking the Show Hidden checkbox allows you to view hidden properties of the component. Hidden properties contain system-defined values and rules for interpreting predefined component parameters. Modifying hidden properties requires specialized knowledge of the component, and is not needed for normal operation.

See Properties Dialog Box for more information on this dialog.
