Ansoft Designer / Ansys Designer 在线帮助文档：

Nexxim Design Examples >
Nexxim RF Design Examples >
Harmonic Balance Analysis Example >
View the Time and Spectral Domain Results

View the Time and Spectral Domain Results

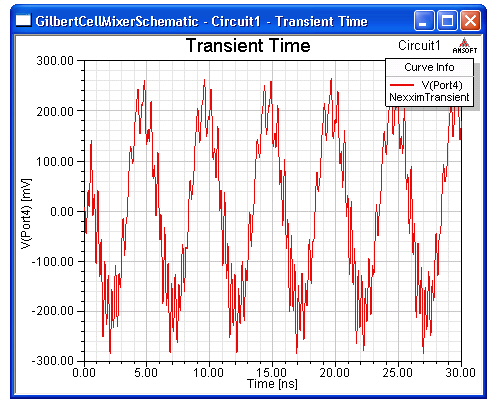

To view the result of transient analysis, expand the reports icon and click on the Transient Time report. The Reports window displays the time domain waveform for the mixer:

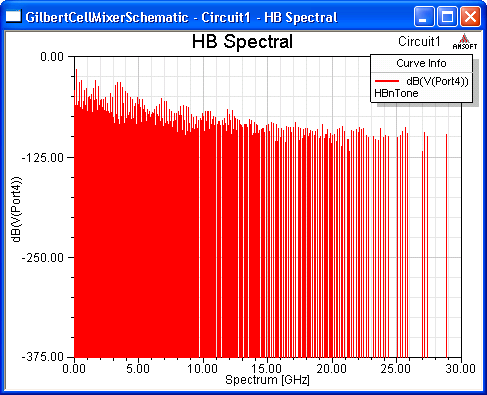

3. Double-click the Spectral report. The Results window displays the frequency domain data:

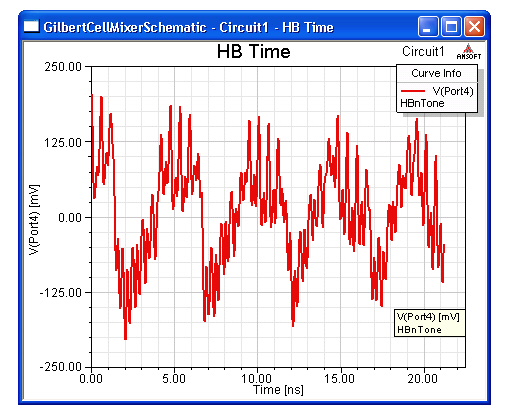

4. For comparison with the transient analysis result, view the harmonic balance analysis results in the time domain. In the Results tree, double-click on the HB Time report. The Results window displays the time domain transformation:

For more information, see Nexxim Harmonic Balance.
