Perform a Transient Analysis with Parameter Sweep

Perform a Transient Analysis with Parameter Sweep

1. Click on the Capacitor and verify that cvalue is the value of the C property.

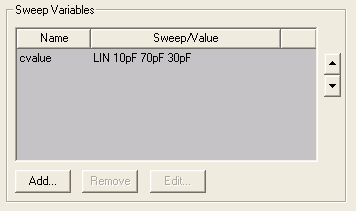

2. Expand the Analysis icon and double-click the Nexxim Transient Sweep setup. Verify that the setup contains a sweep of cvalue:

This setup specifies a linear sweep of cvalue from 10pF to 70pF with a step of 30pF. The swept values will be 10pF, 40pF, and 70pF.

3. To run the transient sweep, right-click the Nexxim Transient Sweep and select Analyze. A progress window appears at the lower right to showeach sweep as transient analysis is being performed. When the analysis is completed, the Message Manager window at the lower left shows the name of the project, errors or warnings if any, and analysis statistics such as CPU time.

4. To view a graph of the results, click the Results icon and select the Transient Sweep report.

The Reports window opens with the graph of the transient analysis with all sweep values:

For more information, see the following related topics:

Nexxim Transient Analysis

Nexxim Variable Sweep
