RF Receiver Schematic

RF Receiver Schematic

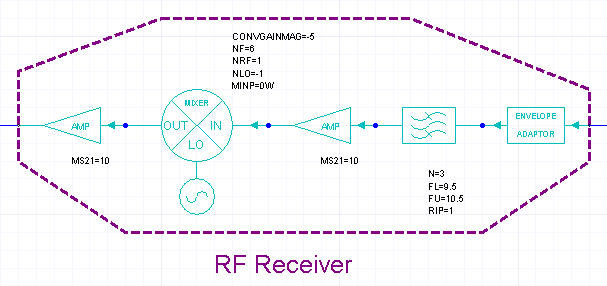

The RF transmitter essentially reverses the sequence of operations performed by the RF Transmitter. The Envelope adaptor interfaces the behavioral channel element with the electrical elements in the RF Receiver. The RF Receiver stage takes the signal mixed with the carrier waveas input and outputs the unmixed signal , amplified and filtered. Here is the RF Receiver schematic:
