       Open the Ring Diode Mixer Schematic

Open the Ring Diode Mixer Schematic

Open the example from the file in the Examples directory.

1. On the File menu, select Open Examples. The File Open window appears.

2. Open the RF_Circuit directory, then the Mixers directory, then select the file Ring_Diode_Mixer.adsn. Click Open.

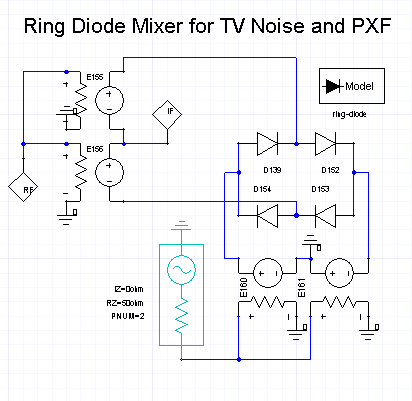

The mixer schematic appears in the design window:
