       Open the Oscillator Schematic

Open the Oscillator Schematic

Open the example Oscillator Schematic project from the Examples directory.

1. On the File menu, select Open Examples. The File Open window appears.

2. Open the RF_Circuit directory, then the Oscillators directory, then select the file ColpittsOscillator.adsn. Click Open.

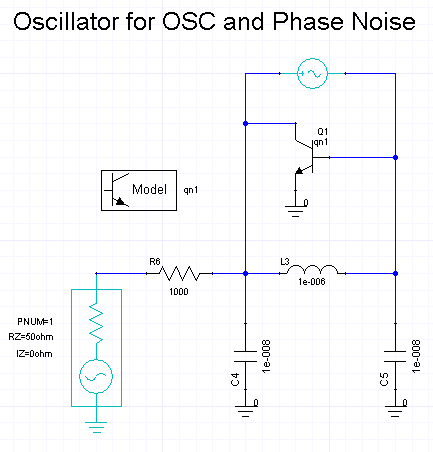

The oscillator schematic appears in the design window:
