       Open the JFET Circuit Example

Open the JFET Circuit Example

Open the netlist project for this circuit from the Examples directory.

1. On the File menu, select Open Examples. The File Open window appears.

2. Open the RF_Circuit directory, then the Amplifiers directory, then select the file JFETCircuitSchematic.adsn. Click Open.

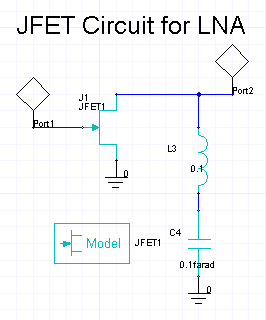

The design appears in the Schematic Editor window.
