Nexxim Design Examples >
Nexxim RF Design Examples >
Linear Network Analysis Example RF >
Export LNA Results to a Touchstone File

Export LNA Results to a Touchstone File

To export the S-parameter data to a Touchstone-format file:

1. Right-click on the LinearFrequency setup and select Export Solution from the menu:

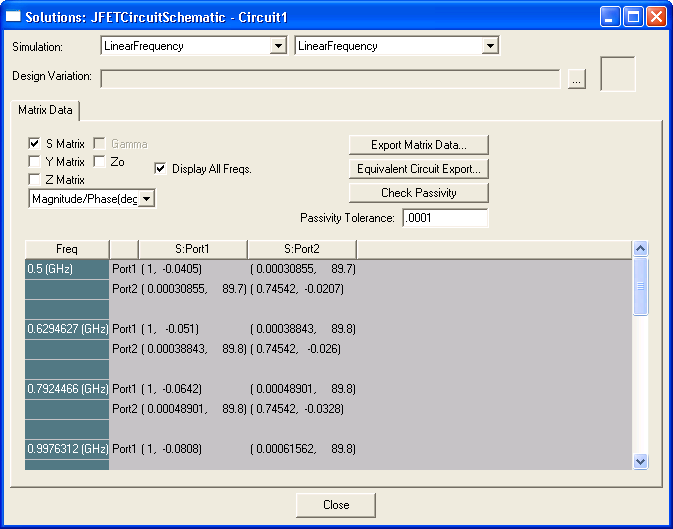

2. The Solutions dialog opens:

3. Select Display All Freqs as shown above.

4. Click the Export Matrix Data button. The Export Network Data Solution window opens. Browse to the target directory and modify the filename if needed. Select Touchstone (*.sNp) format from the Save as Type pulldown..

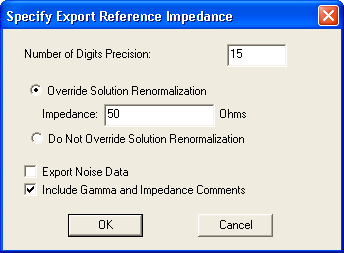

5. Click Save. The Export Reference Impedance dialog opens:

6. Click OK to accept the default impedance, The solution is exported to the specified file.

7. Click Close to close the Solutions dialog.

For more information, see Nexxim Linear Network Analysis.
