       Channel Schematic

Channel Schematic

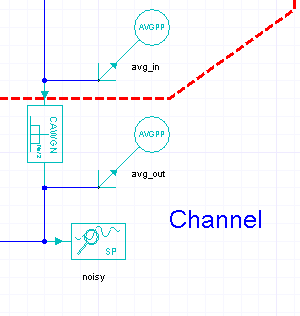

Here is the schematic for the communication channel:

:

The channel models a noisy transmission line. The channel consists of one element and two probes from the System library.

• A channel element with added complex Gaussian white noise.

• An average power probe, avg_out, is inserted to enable you to view the average power after the channel.

• A system probe, noisy, is inserted to enable you to view the signal and noise at the receiving end of the channel.
