Baseband Receiver Schematic

Baseband Receiver Schematic

The Baseband reciever essentially reverses the sequence of operations performed by the Baseband transmitter. The receiver inputs a modulated signal, then downshifts, demodulates, and decodes it, and finally outputs the received bitstream.

The output from the pseudorandom bit generator and the bit stream output from the Baseband reciever are both sent to a bit error probe (BERP) for direct comparison and calculation of the bit error rate (BER).

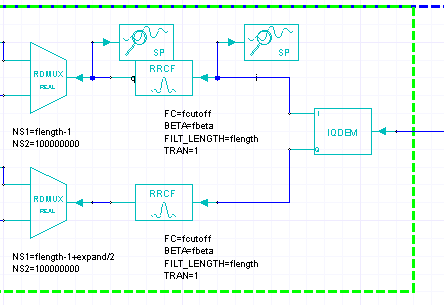

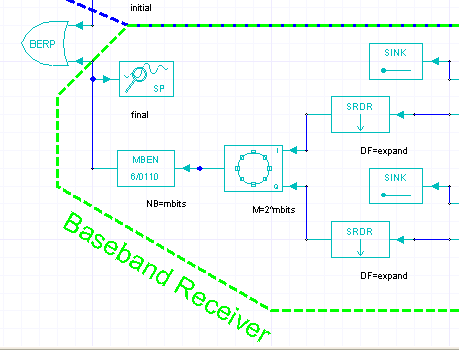

Here are the right and left sides of the Baseband reciever schematic:
