Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
Quick Start Guide >
Select the Type of Design to Create

Select the Type of Design to Create

To create a design in Designer, you must first select the type of design to create. Designer supports the following types of designs:

• EM Design — A layout, topology-based, 2.5D full-wave, planar electromagnetic simulator

• System — A schematic-based system-analysis tool

• Circuit — A schematic-based, HSPICE/SPECTRE-compatible, Nexxim circuit simulator

• Netlist — A raw netlist version of the Nexxim circuit simulator

• Filter Design — A schematic-based design for creating filters for high frequency RF and microwave applications

When you create a new design, Designer stores the data in a “project” file. Project files in Designer have an “.adsn” extension on your hard drive. Although it is possible for a single Designer project file to contain many different designs and design-types, for organizational purposes it is strongly recommended that you store different designs and design-types in different project files. Designer menu choices are chiefly context sensitive, depending upon your progress in the design process — this may be confusing at first, but becomes increasingly clear as you see that only those commands which are applicable at any given point in time (and development) are available. Also, please note that at any time during your development process, you can contact Ansoft for Technical Support.

To create a design, choose one of the following Project menu items or click on one of the toolbar “Insert” icons.

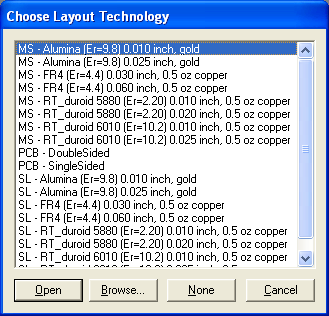

This opens the Choose Layout Technology dialog:

The next step is to Define the Initial Physical Stackup.
