Ansoft Designer / Ansys Designer 在线帮助文档:


Getting Started with Ansoft Designer >
Quick Start Guide >
   Define the Initial Physical Stackup


Define the Initial Physical Stackup

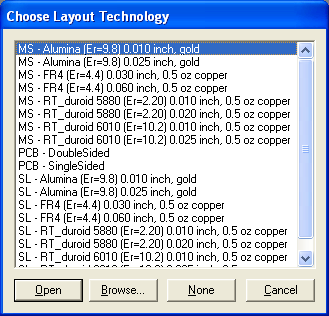

When you choose one of the insert design commands from the Project menu, Designer opens a corresponding Choose Layout Technology dialog that allows you to optionally define the initial physical stackup for your design:



Note

Not all designs require a physical stackup or a technology file.



Designer’s layout technology files contain groups of standard, preset traces and substrates that define the physical stackup of a design. Several standard technology files are included with Designer. When you start a new design, you can:

• Use one of Designer’s layout technology files

• Create your own custom technology file

• Start with a preset technology file and then modify the stackup
(at any point in your design process)

• Choose not to use a preset technology file by clicking None

The set of standard technology files included with Designer are primarily for RF-microwave and printed circuit board applications.



The next step is to Populate the Design.
