Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
Quick Start Guide >
Populate the Design

Populate the Design

To create your design, add components to your schematic and/or add geometry to your layout. Include linked (HFSS, Q3D, SIwave, etc.) and imported models (measured data) as desired.

Note

Different design types allow the use of different types of components. In other words, system designs can only use system components and Nexxim designs can only use Nexxim components.

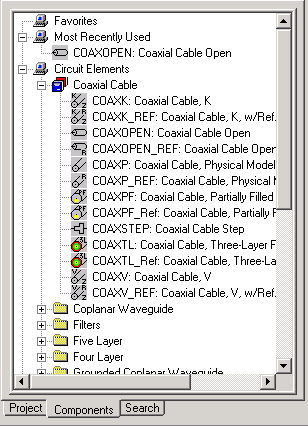

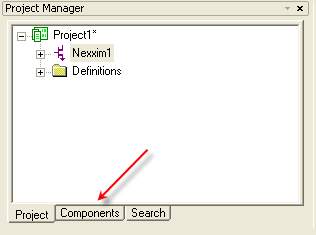

Circuit components are found on the Components tab in the Project Manager:

In the Project Manager window, you can expand the various groups of different components and then drag-and-drop components onto the schematic. You can also use the Search tab to find components by keywords.

• Hit the R key on your keyboard to rotate a component before you place it. Use the escape key or the right mouse menu to finish placing the component.

• Once you have placed several components on your schematic, you can wire them together by dragging them closer together so that their pins touch. Then, when you drag the components apart again, they will remain wired. You can also use the Wire command under the Draw menu or the wire icon on the toolbar. If desired, you may also add a ground using the toolbar icon.

• The schematic can be centered by hitting Ctrl-D. Pan the schematic by holding the shift key on your keyboard and moving the mouse with left button pressed. Zoom the schematic in and out by holding the shift and alt keys together and moving the mouse with left button pressed.

The next step is to Add Ports and Sources.
