Getting Started with Ansoft Designer > Add Ports and SourcesThe type of ports and sources you add depends on the type of design you wish to analyze and the type of analysis you wish to run. For example, in Nexxim and Systems designs, you normally add ports to your schematic that include default terminations, while sources can be added independently to your circuit or configured/included within a port.

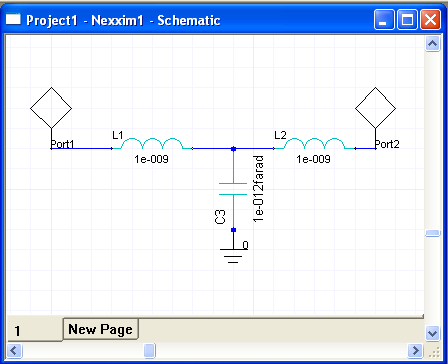

The simplest way to add a port to a Nexxim circuit is to select the Interface Port icon on the toolbar...
...and then place the port into your schematic.
Ports for PlanarEM designs are added by selecting an edge of one of the geometric objects in your design and defining a port. Alternately, a plane wave can be used to excite the design.
The next step is to Create a Solution Setup.
