Ansoft Designer / Ansys Designer 在线帮助文档：

Getting Started with Ansoft Designer >
Quick Start Guide >
   Create a Solution Setup

Create a Solution Setup

You tell Designer what type of analysis to perform and what frequencies/time-ranges to analyze by creating a solution setup. The types of solution setups you can add to a particular design depends on the design type:

• To a PlanarEM design, such as EM Design and HFSS, you can only add frequency sweeps

• To a Nexxim circuit design, you can add frequency sweeps, transient analyses, harmonic-balance analyses and several other types of setups

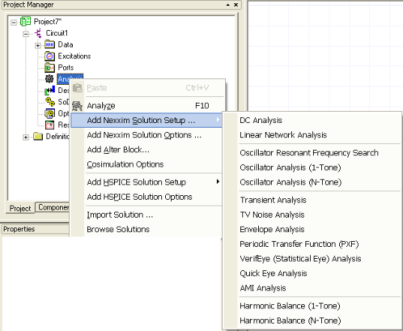

To add a solution setup to a Nexxim design, right click on Analysis in the Project Manager and choose Add Nexxim Solution Setup and then select the appropriate analysis type:

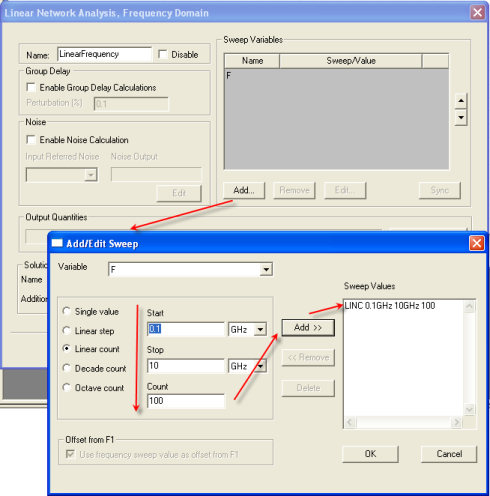

A dialog opens that allows you to add a frequency or parameter sweep if desired. For example, to add a frequency sweep using a Linear Network Analysis setup dialog shown below, click the Add button and set the frequency values. When you have finished configuring the setup, click the OK buttons to close each open dialog.

The next step is to Analyze the Design.
