           Selecting a Global Port Symbol

Selecting a Global Port Symbol

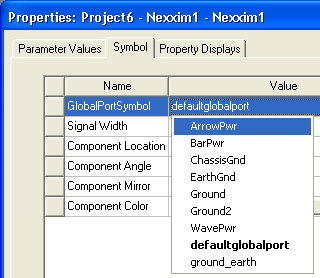

Eight different symbols are available to represent various kinds of global ports. To select a symbol other than the default, double click on the global port symbol to open the Properties dialog box. Select the Symbol tab. Left-click on the Value field for the GlobalPortSymbol to display a pulldown with the choices for symbols.

Select a symbol and click OK to close the Properties dialog box. The new symbol is displayed in the schematic.

Note

All of the global port symbols except the defaultglobalport symbol can be edited in the Symbol Editor (part of the Library Editor).
