N-Ports with Two Connecting Ports
A two-port N-port has two connecting
ports and can be used to represent a complex load or a lumped element
such as a resistor, capacitor, or inductor.
Designer provides a set of sample two-port
S-parameter files for commonly used lumped elements. These
two-port S-parameter files have the .s2p extension
and are in the Touchstone format. The 0OHM.s2p
file corresponds to an idealized two-port short, the 50OHM.s2p file to an idealized two-port
50-ohm load, and the 100OHM.s2p
file to an idealized two-port, 100-ohm load.
The S-parameters of a two-port lumped element can be computed by
where ZL is the complex
impedance of lumped element and Zo is the reference impedance (typically

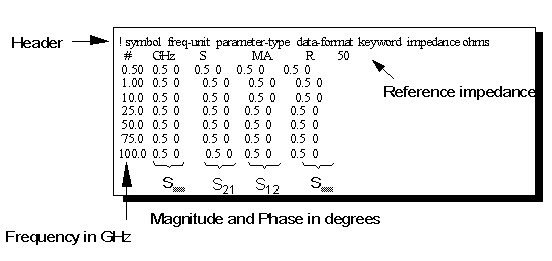

50 ohms) of the lumped element. The format for the sample .s2p file
is illustrated below.
