Ansoft Designer / Ansys Designer 在线帮助文档:


HFSS and Planar EM Simulators >
Excitations >
   Working with Imported S-Parameter Data >
       N-Ports with Four Connecting Ports


N-Ports with Four Connecting Ports

A four-port N-port has four connecting ports and can be used to represent any four-port device.

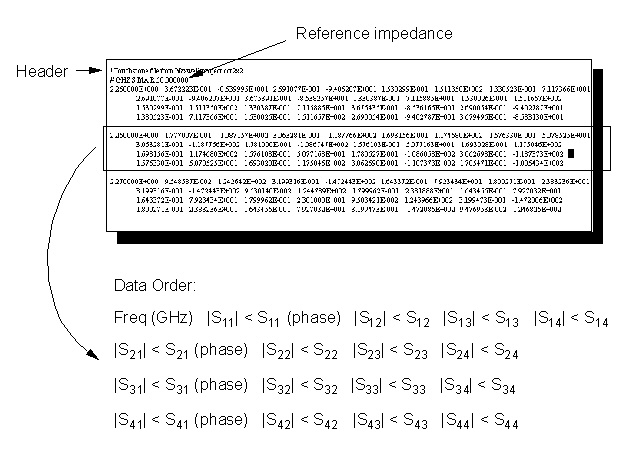

You can create a four-port N-port S-parameter file by copying one of the sample .s1p or .s2p files to a new file of a different name and editing the file so that it conforms to the format illustrated below:
