Open the Simple Channel Project from the Examples Directory

Open the Simple Channel Project from the Examples Directory

Open the simple mixer project from the directory of Nexxim example projects.

1. On the File menu, select Open Examples. The File Open window appears.

2. Open SI_Circuit, then select the file SimpleChannel.adsn. Click Open.

The Schematic Editor window opens to display the mixer schematic.

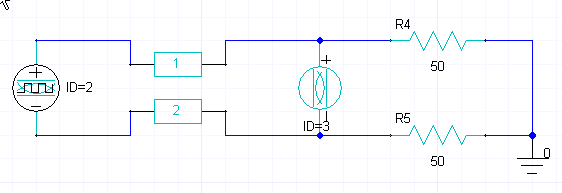

The channel consists of a microstrip differential line and a pair of terminating resistors. The Eye Source on the left specifies the parameters of the input signal including transmitter properties such as transmit jitter and equalization. The Eye source can generate a bit stream for QuickEye or Transient analysis. The Eye Probe on the right captures the output and can add receiver equalization.

The next step is to set up and run Nexxim VerifEye and QuickEye analyses.
