Ansoft Designer / Ansys Designer 在线帮助文档:


Dynamic Links and Solver On Demand >
   Dynamic Links >
       Adding a Dynamic Link Parametric N-Port


Adding a Dynamic Link Parametric N-Port

To create a dynamic link Parametric N-Port in Designer, you import the Parametric data as an N-port device.



To add a Parametric N-Port as a subcircuit to a design:

1. Open the design to which you want to add a subcircuit.

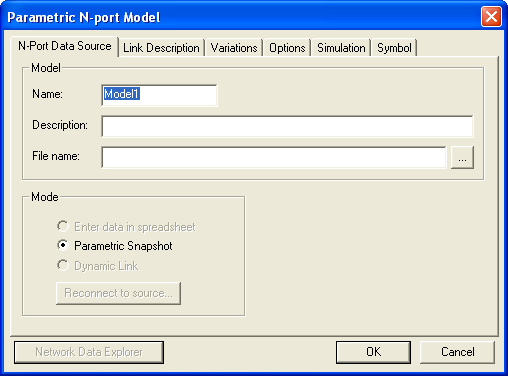

2. On the Project menu, point to Add Model, and then select Add Parametric Model. The Parametric N-port Model dialog opens:

3. Use the Parametric N-port Model dialog to select a design and a set of design data. For additional information concerning available tabs and option settings when configuring dynamic links, see Add an HFSS N-Port Model.

4. Click OK to close the Parametric link and the Parametric N-port Model dialog.
