Adding a Dynamic Link N-Port from Q3D

Adding a Dynamic Link N-Port from Q3D

To create a dynamic link from Q3D to Designer, you import the Q3D data as an N-port device.

Note

When you add a Q3D subcircuit, Designer starts Q3D. By default, the latest version of Q3D is opened. After Q3D has started, you must close Q3D and Designer separately. Closing Q3D does not close Designer, and closing Designer does not close Q3D.

To add a Q3D N-Port as a subcircuit to a design:

1. Open the design to which you want to add a subcircuit.

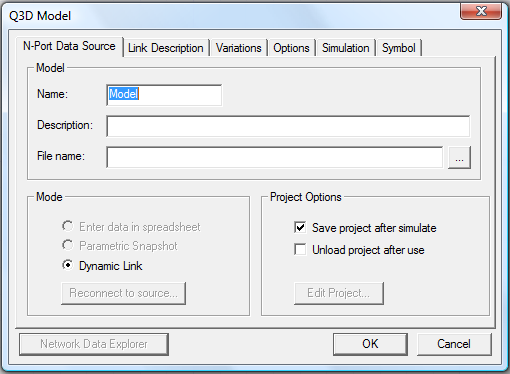

2. On the Project menu, point to Add Model, and then select Add Q3D Model. The Q3D Model dialog opens:

3. Use the Q3D Model dialog to select a design and a set of design data. For additional information concerning available tabs and option settings when configuring dynamic links, see Add an HFSS N-Port Model.

4. Click OK to close the Q3D link and the Q3D Model dialog.
