CST的Discrete ports仿真dipole天线时,如何更改端口阻抗
来源：edatop
更新时间：2024-07-16
阅读：
请问CST的Discrete ports仿真dipole天线时,如何将仿真系统阻抗由50改为52+j158,谢谢.
以前的帖子里面说可以用lump network element里面的电感值来代替虚部。
不过具体细节不是很清楚。
望给个解答
有谁可以帮忙回答,谢谢.
好像现在还不可以 上次说错了 请见谅
Macros
Macros

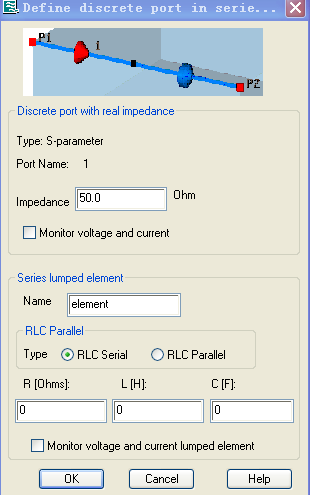

MacrosConstruct Discrete PortsDiscrete port with lumped element
This is useful when the port needs to be matched to an external device whose impedance is not purely real. For example, RFID antennas at low frequencies (in the MHz range) often behave as an inductor: a capacitor needs to be added in series with the discrete port, in order to obtain a good match at the desired frequency.
好像可以完成你要的功能，但是我不知道这么用？
知道的人帮忙说下
谁可以帮忙解释要如何设置才正确,谢谢.
