Smith Tool >
Smith Tool Dialog

Smith Tool Dialog

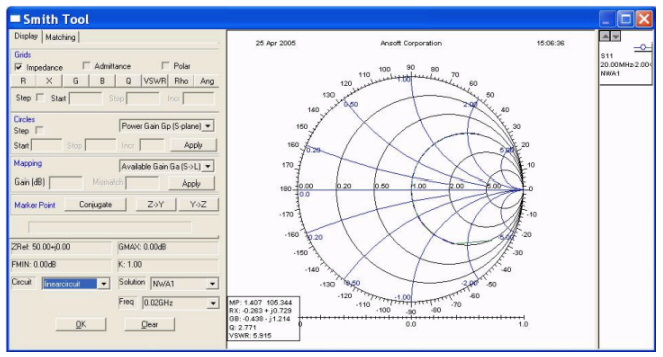

The Smith Tool dialog is resizable and consists of control sections at left and a Smith chart display at right.

• The control section at left contains Display and Matching tabs and controls settings for session parameters.

• The display section at right contains a Smith chart representation of the parent circuit’s S₁₁ response.

Settings for Session Parameters

The bottom portion of the Smith Tool control section displays the following information:

• Reference impedance (ZRef)

• Minimum possible noise figure (FMIN)

• Maximum gain (GMAX)

• Stability factor (K) for the selected Circuit, Solution, and Frequency.

Note

For a Smith Tool session based on a swept-frequency analysis, the Freq selection defaults to the lowest frequency in the sweep. Be sure to select the correct frequency as you begin your Smith Tool session.

The topics for this section include:

Display Tab

Matching Tab
