Ansoft Designer / Ansys Designer 在线帮助文档：

Generating Reports and Postprocessing >
   Creating Reports >
       Display Types >
           Smith Contour Plot

Smith Contour Plot

To display a contour chart of the load-pull results after a successful analysis:

1. Left click Product > Results (or right-click Results in the Project tree) and point to a desired report type and then select Smith Contour Plot from the submenu that appears. The New Report dialog appears.

2. Select the output quantities of interest and click Add Trace.

3. Click Done. A Report window opens to display a graph of the analysis results.

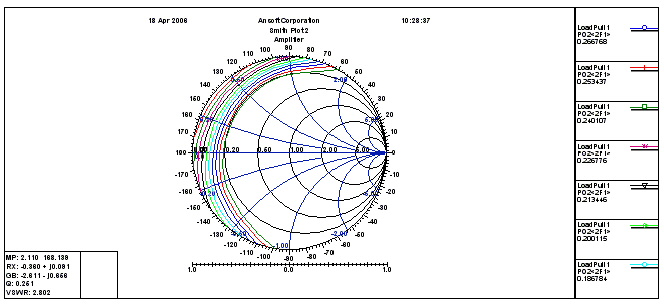

A Smith Contour Plot resembles the following:
