Voltage-Controlled Resistor, Multi-Input Gate

Voltage-Controlled Resistor, Multi-Input Gate

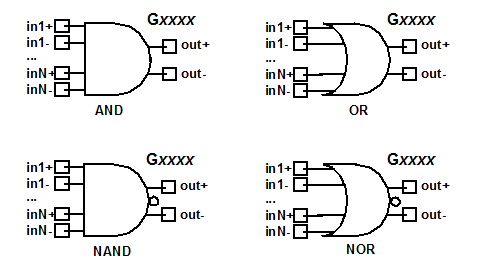

VCR Gate Netlist Format

The format for an N-input AND gate voltage-controlled resistor (VCR) is:

Gxxxx out+ out- VCR AND(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input NAND gate VCR is:

Gxxxx out+ out- VCR NAND(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input OR gate VCR is:

Gxxxx out+ out- VCR OR(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

The format for an N-input NOR gate VCR is:

Gxxxx out+ out- VCR NOR(N) in1+ in1- ... inN+ inN-

minval1 outval1 ... minvalK outvalK

[DELTA=val] [TC1=val] [TC2=val] [SCALE=val] [M=val]

out+ and out- are the nodes of the output resistance. The entry VCR is required to identify the voltage-controlled resistor type. in1+ in1- ... inN+ inN- are the positive and negative node pairs for the multiple control voltage inputs. The number of input node pairs (N) in the list must be the same as the value specified for AND(N), NAND(N), OR(N), or NOR(N).

**Multi-Input Gate VCR Instance Parameters**
Parameter	Description	Unit	Default
DELTA	Distance over which curvature is applied in the interpolation function Zero produces linear interpolation, positive values produce continuous curvature over the waveform Maximum is one-half of the smallest difference between control (input) values	None	One-fourth of the smallest difference between control (input) values
M	Divisor to simulate parallel elements	None	1.0
SCALE	Scale factor for resistance	None	1.0
TC1	Linear (1st-order) temperature coefficient	°K^-1	0.0
TC2	Quadratic (2nd-order) temperature coefficient	°K^-2	0.0

VCR Gate Netlist Examples

These two-input examples assume logic “0” is 0.0 mW output at 0.0 volts input, and logic “1” is 5.0 mW output at 5.0 volts input.

Gand2 30 0 VCR AND(2) 21 0 22 0
+ 0.0 0.0
+ 0.5 0.1e-3
+ 1.0 0.2e-3
+ 4.0 4.5e-3
+ 4.5 4.75e-3
+ 5.0 5.0e-3

Gnand2 40 0 VCR NAND(2) 23 0 24 0
+ 0.0 5.0e-3
+ 0.5 4.75e-3
+ 1.0 4.5e-3
+ 4.0 0.2e-3
+ 4.5 0.1e-3
+ 5.0 0.0e-3

Gor2 50 0 VCR OR(2) 25 0 26 0
+ 0.0 0.0e-3
+ 0.5 0.1e-3
+ 1.0 0.2e-3
+ 4.0 4.5e-3
+ 4.5 4.75e-3
+ 5.0 5.0e-3

Gnor2 60 0 VCR NOR(2) 27 0 28 0
+ 0.0 5.0e-3
+ 0.5 4.75e-3
+ 1.0 4.5e-3
+ 4.0 0.2e-3
+ 4.5 0.1e-3
+ 5.0 0.0e-3

See the examples for the VCVS Multi-Input Gate element for samples of simulation runs produced by these devices.

Notes

The output is specified as a function of the inputs using a set of pairs (minval, outval or maxval, outval), separated by spaces and/or commas. Voltages are specified in volts, resistances in Ohms. The pairs should be entered in ascending order of minval or maxval (see Netlist Examples). Any number of pairs may be specified.

For AND and NAND gates, the simulator finds the minimum difference between all pairs of inputs:

mindiff = MIN[V(in1⁺ - in1^-), V(in2⁺ - in2^-), ...V(inN⁺ - inN^-)]

The simulator matches mindiff to the list of entries minval1 ... minvalK in the instance statement, and sets the output to the corresponding outval.

When mindiff is equal to the voltage that represents logic “0” or logic “1,” the corresponding output from an AND or NAND gate should be set accordingly.

Values of mindiff that are intermediate between the logic “0” and “1” voltages represent transitional values. For intermediate values that are not in the list of minvals, the simulator calculates the corresponding output by interpolation from the given values. The use of the DELTA parameter allows you to control the curvature of the interpolation to guarantee that the 1st derivative of the curve is continuous.

For values of mindiff that are below the range of listed input voltages, the simulator sets the output resistance to the one corresponding to the smallest input voltage in the list. For values of mindiff that are above the range of listed input voltages, the simulator sets the output resistance to the one corresponding to the largest input voltage in the list.

For OR and NOR gates, the simulator finds the maximum difference between all pairs of inputs:

maxdiff = max[V(in1⁺ - in1^-), V(in2⁺ - in2^-), ...V(inN⁺ - inN^-)]

The simulator matches maxdiff to the list of entries maxval1 ... maxvalK in the instance statement, and sets the output to the corresponding outval.

When maxdiff is equal to the voltage that represents logic “0” or logic “1,” the corresponding output from an OR or NOR gate should be set accordingly.

Values of maxdiff that are intermediate between the logic “0” and “1” voltages represent transitional values. For intermediate values that are not in the list, the simulator calculates the corresponding output by interpolation from the given values, using the DELTA parameter as discussed above.

For values of maxdiff that are below the range of listed input voltages, the simulator sets the output resistance to the one corresponding to the smallest input voltage in the list. For values of maxdiff that are above the range of listed input voltages, the simulator sets the output resistance to the one corresponding to the largest input voltage in the list.
