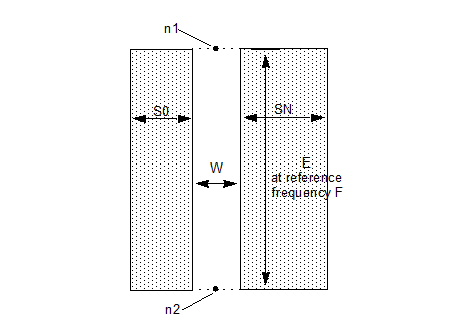

Transmission Line, Electrical Length





Netlist Format

An instance of a transmission line with electrical length has the following netlist syntax:

Axxx n1 n2 W=val E=val F=val COMPONENT=slottrle SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the transmission line. The entry COMPONENT=slottrle identifies the element as a transmission line with electrical length.

The SUBSTRATE=substrate_name is the slotline substrate model name selected for the design (see Selecting a Slotline Substrate for details.




Transmission Line with Electrical Length,
Instance Parameters

Parameter

Description

Units

Default

W

Conductor width

Meter

0.0001

E

Electrical length

Degree

45

F

Reference frequency for E

Hz

1e9

Netlist Example

A7 Port1 Port2 W=0.001 E=45 F=5000000000
+ COMPONENT=slottrle SUBSTRATE=SLOT1

where SLOT1, the selected layout technology or substrate type, has a definition such as:

.SUB SLOT1 SLOT(
+ B=0.001524 Er=4.4 TAND=0.02 H=0.5e-3 HU=2.54e-003
+ MET1=1.724137931034483 T1=2.5400e-005
+ RGH=0)

Notes

1. [Slotline] The MCPL is used to analyze the slotline.
