   Transmission Line, Physical Length

Transmission Line, Physical Length





Netlist Format

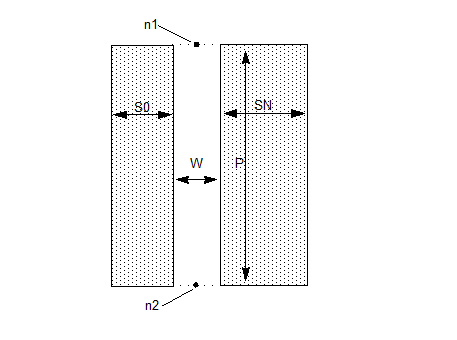

An instance of a transmission line with physical length has the following netlist syntax:

Axxx n1 n2 [W=val] [P=val] COMPONENT=slottrl SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the transmission line. The entry COMPONENT=slottrl identifies the element as a transmission line with physical length.

The SUBSTRATE=substrate_name is the slotline substrate model name selected for the design (see Selecting a Slotline Substrate for details.




Transmission Line with Physical Length,
Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

1e-2

W

Conductor width

Meter

1e-4


Netlist Example

A23 Port1 Port2 W=1.2700e-004 P=0.001
+ COMPONENT=SLOTTRL SUBSTRATE=SLOT1

where SLOT1, the selected layout technology or substrate type, has a definition such as:

.SUB SLOT1 SLOT(
+ B=0.001524 Er=4.4 TAND=0.02 H=0.5e-3 HU=2.54e-003
+ MET1=1.724137931034483 T1=2.5400e-005
+ RGH=0)

Notes

1. [Slotline] The MCPL is used to analyze the slotline.
