Ansoft Designer / Ansys Designer 在线帮助文档:


Nexxim Simulator >
Nexxim Component Models >
Microstrip Elements >
   Shorted Stub, Electrical Length with Reference

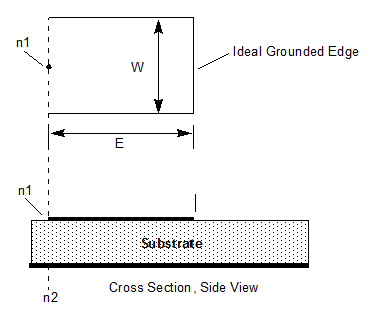

Shorted Stub, Electrical Length with Reference



[spacer]





Netlist Format

An instance of a shorted stub, electrical length with reference has the following netlist syntax:

Axxx n1 n2 W=val E=val F=val COMPONENT=shorted_stub_electrical SUBSTRATE=substrate_name

n1 is the name of the node attached to the shorted stub. n2 is the reference node. The entry COMPONENT=shorted_stub_electrical identifies the element as a shorted stub, electrical length with or without a reference node.

The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.




Shorted Stub, Electrical Length with Reference, Instance Parameters

Parameter

Description

Units

Default

W

Line width

Meter

1e-3

E

Electrical length

Degree

45

F

Reference frequency for E

Hz

1e9


Netlist Example

A44 Port1 Port 2 W=1.0e-3 E=45 F=1.0e9
+ COMPONENT=shorted_stub_electrical SUBSTRATE=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)
