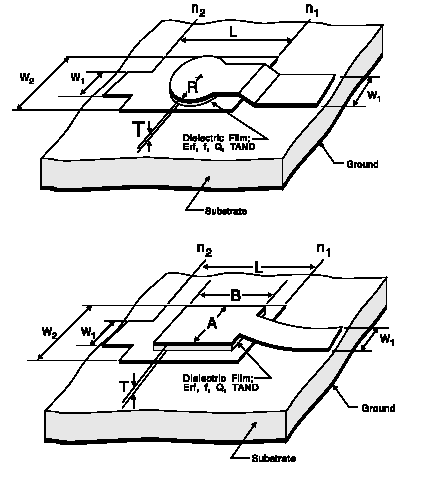

   MIM Rectangular Capacitor, C and Loss Specified

MIM Rectangular Capacitor, C and Loss Specified



[spacer]



[spacer]

Netlist Form

Axxxx n1 n2 W1=val W2=val L=val C=val TAND=val COMPONENT=msmimct SUBSTRATE=substrate_name

n1 and n2 are the names of the nodes attached to the capacitor. The entry COMPONENT=msmimct identifies the element as a MIM rectangular capacitor, capacitance and loss specified, microstrip substrate.

The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.




MIM Rectangular Capacitor, C and Loss Specified Instance Parameters

Parameter

Description

Unit

Default

W1

Width of MS feeder line

Meter

1e-3

W2

Width of bottom plate

Meter

1e-3

L

Length of bottom plate

Meter

1e-3

C

Capacitance of MIM

Farad

1e-12

TAND

Loss tangent of the thin film

None

0.0



Netlist Example

A23 Port1 Port2 W1=0.5e-3 W2=0.5e-3 L=1.1e-3 C=1.8e-12 TAND=1.4 COMPONENT=msmimct SUBSTRATE=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)
