   Coupled Lines, Open Ends Opposite Side, Symmetric

Coupled Lines, Open Ends Opposite Side, Symmetric



[spacer]



[spacer]

Netlist Form

A symmetric coupled line, open ends opposite side instance has the following netlist syntax:

Axxx n1 n2 [W=width] [P=length] [S=spacing]
COMPONENT=mcplo SUBSTRATE=substrate_name

n1 andn2 are the names of the nodes. The entry COMPONENT=mcplo identifies the element as a symmetric coupled line, open end opposite side.

The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.

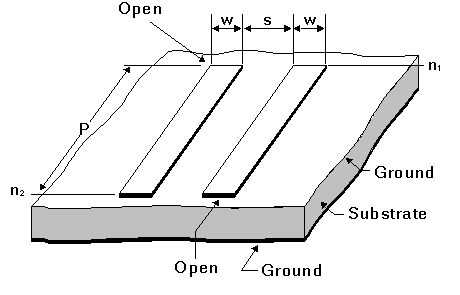

Symmetric Coupled Line, Open End Opposite Side,
Instance Parameters

Parameter

Description

Units

Default

P

Physical length

Meter

10e3

S

Spacing between conductors

Meter

1e-3

W

Conductor width

Meter

1e-3


Netlist Example

A3 Port1 Port2 W=0.33mm P=3.5mm s=0.457mm
+ COMPONENT=mcplo SUBstrate=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)
