   Lange Coupler, Physical Length

Lange Coupler, Physical Length



[spacer]



[spacer]

Netlist Format

A Lange coupler, physical length instance has the following netlist format:

ALANGxxx n1 n2 n3 n4 N=4 W=val S=val P=val
NW=val DW=val SW=val WL=val ANGC=val ANGO=val
COMPONENT=mslange_physical SUBSTRATE=substrate_name

n1, n2, n3, and n4 are the names of the nodes attached to the coupler. The entry COMPONENT=mslange_physical identifies the element.

The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.

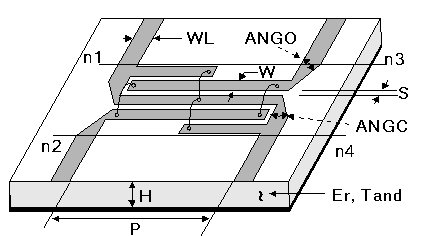

Lange Coupler, Physical Length Instance Parameters

Parameter

Description

Unit

Default

N

Number of lines. Must be 4.

None

4

W

Conductor width

Meter

1e-3

S

Conductor spacing

Meter

1e-3

P

Physical length

Meter

10e-3

NW

Number of bond wires

None

1

DW

Diameter of bind wires

Meter

25.4e-6

SW

Spacing between bond wires

Meter

0.0

WL

Width of connecting lines

Meter

1e-3

ANGC

Miter angle of center arm bends

Degree

45

ANGO

Miter angle of outer arm bends

Degree

45


Netlist Example

ALANG1 Port1 Port2 Port3 Port4 N=4 W=1e-3 S=.2e-3 P=10e-3
+ COMPONENT=mslange_physical SUBSTRATE=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)

Notes

1. The bond wire is considered to be a semicircular shape with diameter equal to the separation between the end points.

2. Taking port 1 to be defined between node 1 and ground (node 0), the remaining ports are defined between the following nodes:
Coupled port: Node n2 and GND
Isolated port: Node n3 and GND
Through port: Node n4 and GND
