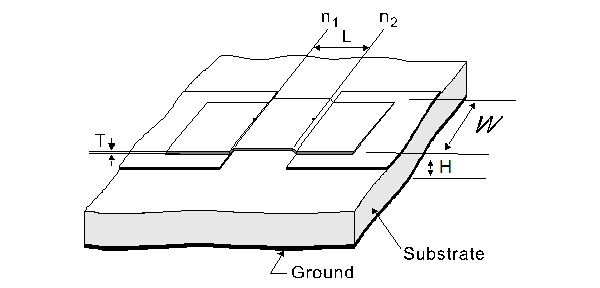

   Air Bridge, Rectangular Cross Section

Air Bridge, Rectangular Cross Section



[spacer]



[spacer]

Netlist Form

An instance of a microstrip air bridge with rectangular cross section has the following Nexxim netlist syntax:

Axxx n1 n2 [W=val] [T=val] [L=val] [R=val] COMPONENT=msjump
+ SUBSTRATE=substrate_name

n1 and n2 are the nodes connected to the bridge. The entry COMPONENT=msjump identifies the element.

The entry SUBSTRATE=substrate_name identifies the microstrip substrate model name selected for the design (see Selecting a Microstrip Substrate). See the Microstrip (MS) Substrate for information on this substrate type.






Air Bridge Instance Parameters

Parameter

Description

Units

Default

W

Width of jumper wire

Meter

0.5e-3

T

Thickness of jumper wire

Meter

0.1e-3

L

Length of jumper wire

Meter

1.0e-3

R

Resistivity of the wire

mohm/cm

0.0


Netlist Example

Ajumper1 1 2 W=0.3e-3 T=0.05e-3 L=0.8e-3 COMPONENT=msjump
+ SUBSTRATE=FR4

where FR4, the selected layout technology or substrate type, has a definition such as:

.SUB FR4 MS( H=7.6200e-004 Er=4.4 TAND=0.02 TANM=0
+ MSat=0 MRem=0 HU=0.00508 MET1=1.72413793103448
+ T1=1.7145e-005 RGH=0mil)
